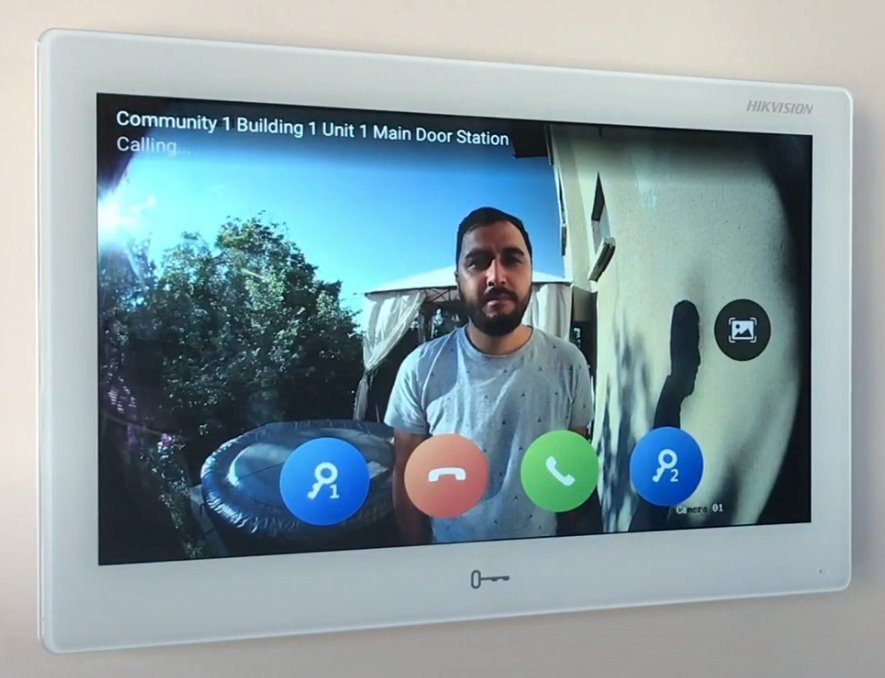

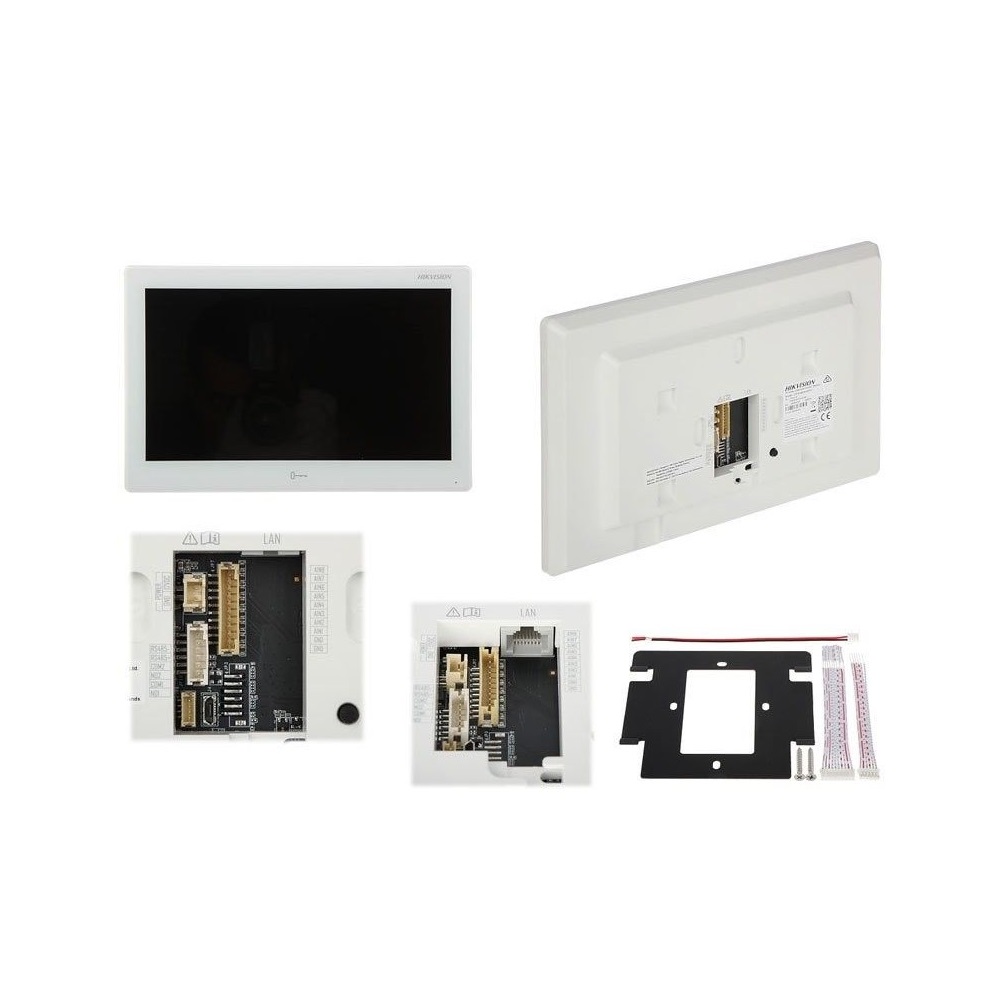

Vnútorná jednotka DS-KH9510-WTE1 pre videovrátnik
System Parameters
- Operation SystemAndroid 10.1
- ROM8 GB
- RAM2 GB
- ProcessorEmbeded high performance processor
Display Parameters
- Screen Size10.1-inch
- Operation MethodCapacitive touch screen
- TypeColorful IPS
- Resolution1024 × 600
Video Parameters
- Lens /
- Resolution /
- FOV /
- Wide Dynamic Range (WDR) /
- Video Compression Standard /
- Focal Length /
Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711U, G.711A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio Quality Noise suppression and echo cancellation
- Volume Adjustment Adjustable
Capacity
- Message Capacity200 captured pictures, 200 alarm records
- Notice Capacity200
- Linked Indoor Extensions Capacity16
- Linked Network Camera Capacity16
- Linked Doorphone Capacity17
Network Parameters
- Network Protocol TCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
Device Interfaces
- Alarm Input8
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- TF CardSupport TF card, up to 128 G
- Alarm Output1
- Lock Control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
General
- Button /
- Installation Surface mounting
- Indicator/
- Weight
Net weight: 875 g
Gross weight: 1060 g
- Protective Level /
- Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity 10% to 90% (no-condensing)
- Dimension (W × H × D)254 mm × 166 mm × 26.65 mm (10.0″ × 6.54″ × 1.05″)
- Battery/
- Power Supply12 VDC, 1 A, IEEE802.3af, standard PoE
- Application EnvironmentIndoor
- Power Consumption≤ 12 W
- LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian
Vzhľadom na použitie, zložitosť a charakter je videotelefón určený na montáž odborníkom. Nesprávnou manipuláciou sa výrobok môže poškodiť. Na poruchy spôsobené nesprávnou manipuláciou sa nevzťahuje záruka.
Neodborná montáž, nesprávne pripojenie, alebo nesprávne nastavenie môžu spôsobiť jeho poškodenie, alebo znefunkčnenie. Telefonicky na zákazníckej linke, len registovaným a zaškoleným partnerom vieme poskytnúť, technické informácie k výrobku.
Ak hľadáte montážneho špecialistu na tento produkt, kontaktujte nás: vares@vares.sk
